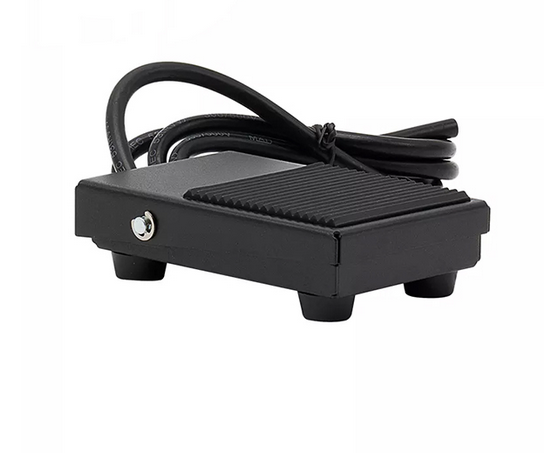

بررسی اجمالیپدال سوئیچ 10 آمپر آهنی CNTD مدل CFS-1
مدل : CFS-1
جنس : آهنی
سایر ویژگی ها : دارای یک کنتاکت باز و یک کنتاکت بسته 1NO+1NC
گارانتی : گارانتی اصالت و سلامت فیزیکی کالا
نقد و بررسی پدال سوئیچ 10 آمپر آهنی CNTD مدل CFS-1
مشخصات فنی:
|
Designation |
Model | Rating | Type of switch enclosed & contact arrangement | Cable type / length | Cantact | Action force | Material of Rind |
| Standard type Momentary Action | CFS-101 | 10A 250VAC | CMV-100D | 0.75mm2,3C/0.5 meter,1 meter~3 meter | 1A1B | 1.2kg | Plastic |
| CFS-102 | 15A 250VAC | CM-1704 | 0.75mm2,3C/1 meter,1.5 meter~2 meter | 1A1B | 1.1kg | ||
| CFS-2 | 10A 250VAC | CMV-100D | 0.5mm2,3C/1 meter~3 meter | 1A1B | 1.1kg | Aluminum Cast | |
| CFS-3 | 10A 250VAC | CMV-100D | 0.75mm2,3C/0.5 meter,1 meter~3 meter | 1A1B | 1.2kg | ||
| CFS-3S | 15A 250VAC | CM-1704 | 0.75mm2,3C/1 meter,1 meter~3 meter | 1A1B | 1.1kg | ||
| Alternate action | CFS-105 | 10A 250VAC | CMV16071C2 | 0.75mm2,3C/1 meter,1 meter~2 meter | 1A1B | 2kg | Plastic |
| CFS-305 | 10A 250VAC | CMV16071C2 | Accessory: Cable gland (No cable) | 3.1kg | Aluminum Cast | ||
| CFS-405 | 10A 250VAC | CMV16071C2 | 3.1kg | ||||
| CFS-505 | 10A 250VAC | CMV16071C2 | 3.1kg | ||||
| Mini foot switch Front end push | CFS-201 | 10A 250VAC | CMV-100D | 0.5mm2,3C/1 meter~3 meter | 1A1B | 0.7kg | Plastic |
| CFS-01 | 10A 250VAC | CMV-100D | 0.5mm2,3C/1 meter~3 meter | 1A1B | 0.7kg | ||
| CFS-1 | 10A 250VAC | CMV-100D | 0.5mm2,3C/1 meter~3 meter | 1A1B | 0.9kg | Iron | |
| Protective guard foot switch | CFS-302 | 15A 250VAC | CM-1704 | Accessory: Cable gland (No cable) | 1A1B | 3.2kg | Aluminum Cast |
| CFS-304 | 15A 250VAC | CM-1704 * 2 | 2A2B | 3.2kg | |||
| CFS-502 | 15A250VAC | CM-1704 | 1A1B | 3.2kg | |||
| CFS-504 | 15A250VAC | CM-1704 * 2 | 2A2B | 3.2kg | |||
| CFS-602 | 15A250VAC | Button spring type | 2*1A1B | 2.8kg | |||
| CFS-702 | 15A250VAC | CM-1704 | 2*1A1B | 3.2kg | |||
| Large type | CFS-402 | 15A250VAC | CM-1704 | 1A1B | 3.2kg | ||
| CFS-404 | 15A 250VAC | CM-1704 * 2 | 2A2B | 3.2kg | |||
| CFS-802 | 15A 250VAC | CM-1704 | 2*1A1B | 3.2kg |
